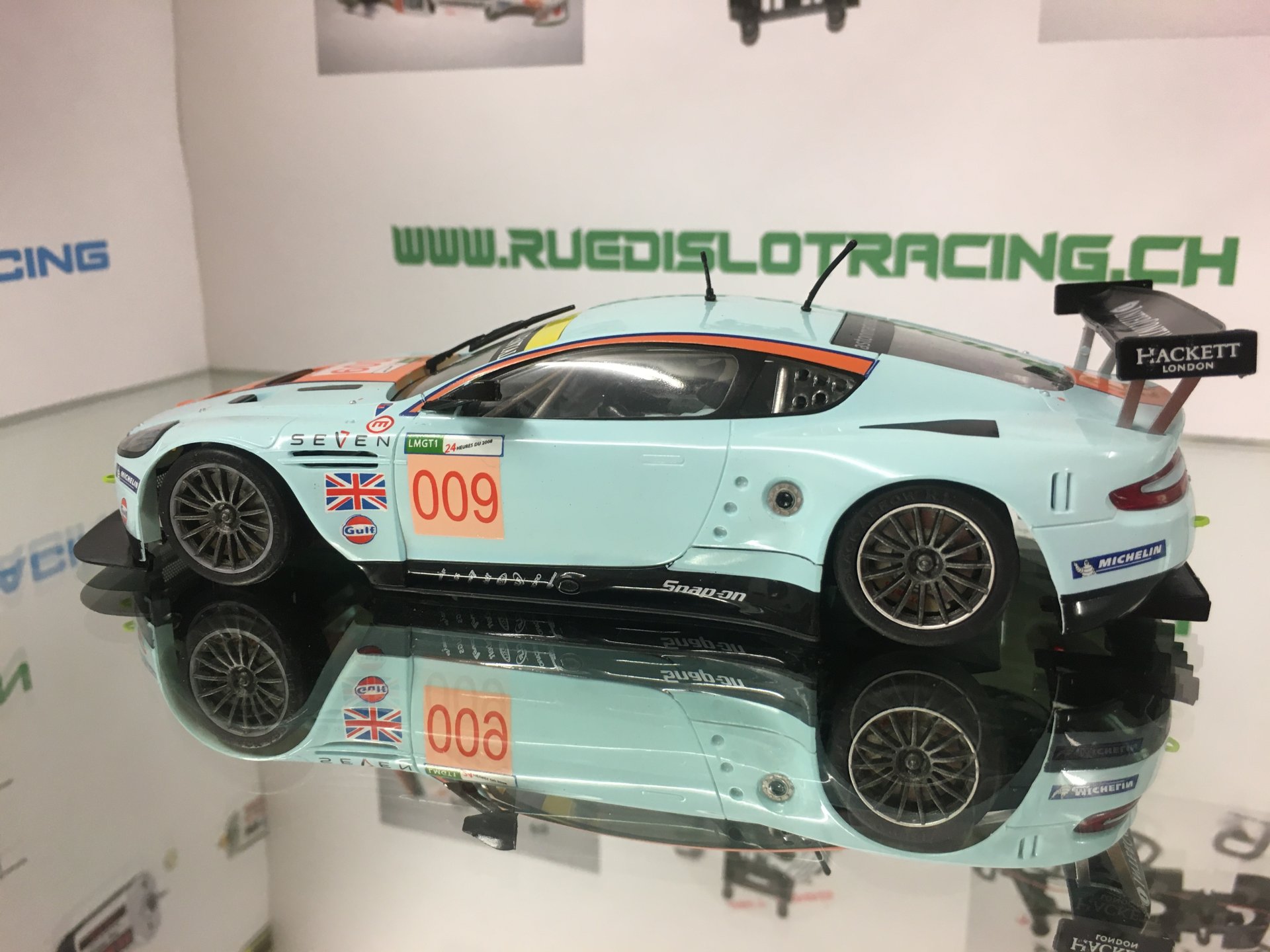

Vehicle image1 / 2 images
1:32Black Arrow· BACM01C
Aston Martin DBR9 N°9 "Gulf"
- Length
- 148.50 mm
- Width
- 64.00 mm
- Height
- —
- Height chassis underside to highest point: —
- Weight
- 78.70 g
Submitted by RSR
Technical data
Drivetrain & chassis
- Motor
- Apache V1 28.000rpm 350g/cm 12 Volt
- Motor layout
- Inline
- Gear
- 37 : 13
- Front axle type
- Continuous
Chassis & body
- Wheelbase (center to center)
- —
- Weight
- 78.70 g
- Body weight
- 21.30 g
- Guide keel position
- before the front axle
Tyres & track
| Feature | Front | Rear |
|---|---|---|
| Track width | — | — |
| Tyre width | — | — |
| Tyre diameter | — | — |
| Ortmann no. | — | — |
| Alternative tyres | — | — |
– = no information
More measurements & guide keel
- Guide keel front → front axle
- —
- Guide keel rear → rear axle
- —
- Front edge → guide keel front
- —
Rating
0 ratings · 0 positive · 0 negative
Contribute & more
What do the measurements mean?
Sketch with all measurement points — please provide values in millimetres.
What do the measurements mean?
Sketch with all measurement points — please provide values in millimetres.
🔍 Click the sketch for a larger view.
- Length / Width / Height
- Overall vehicle dimensions, measured at the widest points.
- Wheelbase
- Center of front wheel ↔ center of rear wheel.
- Front edge -> Guide
- From the vehicle's front edge to the front edge of the guide keel.
- Guide front -> Front axle
- From the front edge of the guide keel to the center of the front axle.
- Guide rear -> Rear axle
- From the rear edge of the guide keel to the center of the rear axle.
- Track width front/rear
- Outer edge ↔ outer edge of both wheels on one axle.
- Tyre width front/rear
- Inner edge ↔ outer edge of a tyre.
- Tyre diameter front/rear
- Overall mounted tyre diameter per axle.
- Height chassis underside -> highest point
- Measure from the lowest chassis underside to the highest point of the car.
Change history
1 entries
RSR added the vehicle to the database.
9/27/26, 12:41 PM
Show details
Hide details
RSR added the vehicle to the database.
9/27/26, 12:41 PM
- Scale: unknown → 1:32
- Manufacturer: unknown → Black Arrow
- Model: unknown → Aston Martin DBR9 N°9 "Gulf"
- Article number: unknown → BACM01C
- Motor: unknown → Apache V1 28.000rpm 350g/cm 12 Volt
- Gear: unknown → 37 : 13
- Length: unknown → 148.50 mm
- Width: unknown → 64.00 mm
- Guide keel position: unknown → before the front axle
- Front axle type: unknown → Continuous
- Motor layout: unknown → Inline
- Weight: unknown → 78.70 g
- Body weight: unknown → 21.30 g
- Main image changed: unknown → 08d48df5ffc367eccd00a73c.jpg View
- Image added: e01fe7114debd5d169cda4ef.jpg View
